The Ilex Combi 35 is a low-maintenance filter system that ensures healthy and clear pond water!

This filter has a capacity to pump 25m3 per hour, and is suitable for koi ponds up to 35,000 litres!

These drum filters are supplied as standard with 3 x 110mm inlets and 2 x 110mm outlet. Extra inlets/ outlets are available on request. Standard with 2 bio chambers!

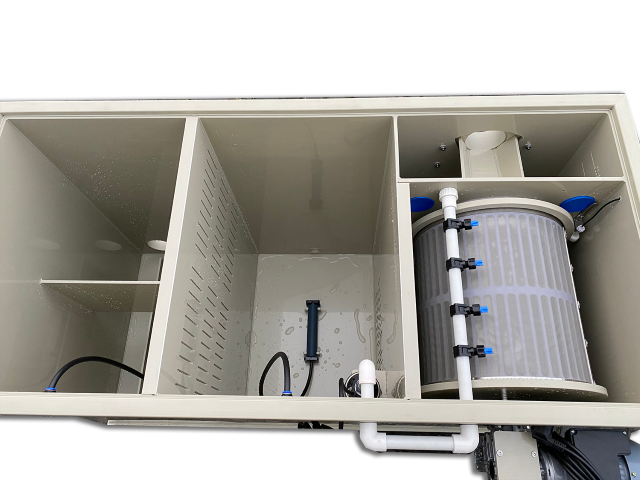

This combi drum filter is equipped with a screen and two bio chambers, allowing for different media types, such as Japanese Matting and Hel-X. Water capacity of the bio chambers is 250 litres.
The Drum Filter is a mechanical pre-filter that easily removes very fine pollution (up to 70 microns) from a water stream. The second chamber then provides powerful biological filtration.

The filter consists of high-quality materials such as stainless steel and polypropylene (PP) and aims to ensure perfect water quality in a simple and reliable way.

This Combi drum filter comes complete with lid, electronics with dry run protection and an Oase flushing pump.

Also included are a Submersible 40W Amalgam UV and Internal Flushing pump.

Drum dimensions: diameter 420mm, length is 400mm.
Maximum flow: 25m3 per hour with maximum water level in gravity setup.
Engine: 105Nm
Control with dry running protection
Bypass for emergencies.
Oase Rinsing pump (3 year warranty)

Air stone 200mm

Both pump and gravity fed available

Dimensions

Length: 1550mm
Width: 910mm
Height: 919mm

Height above water level 11.5cm (water level to bottom filter is 640mm)

The filter comes standard with a 2-year warranty (excl. screen)

Please call to specify type of media required and additional cost.
